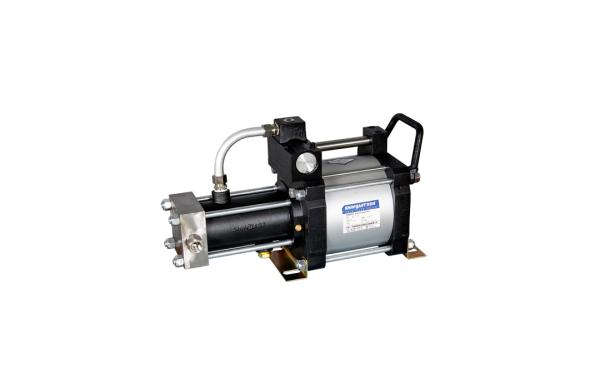

Air Driven CO2 Pumps
SHINEEAST CO2 Pumps are available in two specifications: STA25-CL, STD25-CL, with pressure ratio of 25:1, with output pressure up to 130bar.
The most important feature of SHINEEAT CO2 Pumps is that the CO2 pumps is not only suitable for transferring CO2 gas, but also suitable for transferring liquid CO2 and mixture of CO2 gas and liquid CO2.
1.Technical parameters of STA25-CL CO2 pumps：
| Product name | STA25-CL CO2 pumps |
| Pressure ratio | 25:1 |
| Max.outlet pressure | 200 bar |
| Rated output pressure | 0-130 bar |
| Drive air pressure | 3-8 bar |
| Max. output flow | 3 litre/min |
| Drive air inlet connection | PT1/2’’ |
| Gas inlet connection | NPT1/4’’ |
| Gas outlet connection | NPT1/2’’ |
| Air drive pressure | 3-8 bar |
| Noise | ＜75dB |
2.Technical parameters of STD25-CL CO2 pumps：
| Product name | STD25-CL CO2 pumps |
| Pressure ratio | 25:1 |
| Max.outlet pressure | 200 bar |
| Rated output pressure | 0-130 bar |
| Drive air pressure | 3-8 bar |
| Max. output flow | 5 litre/min |
| Drive air inlet connection | PT1/2’’ |
| Gas inlet connection | NPT1/4’’ |
| Gas outlet connection | NPT1/2’’ |
| Air drive pressure | 3-8 bar |
| Noise | ＜75dB |
