Liquified Gas Pumps
Description
SHINEEAST G4-FL and GD4-FL Model Air Driven LPG Pump is especially designed for pumping LPG, and charging up LPG cylinders.

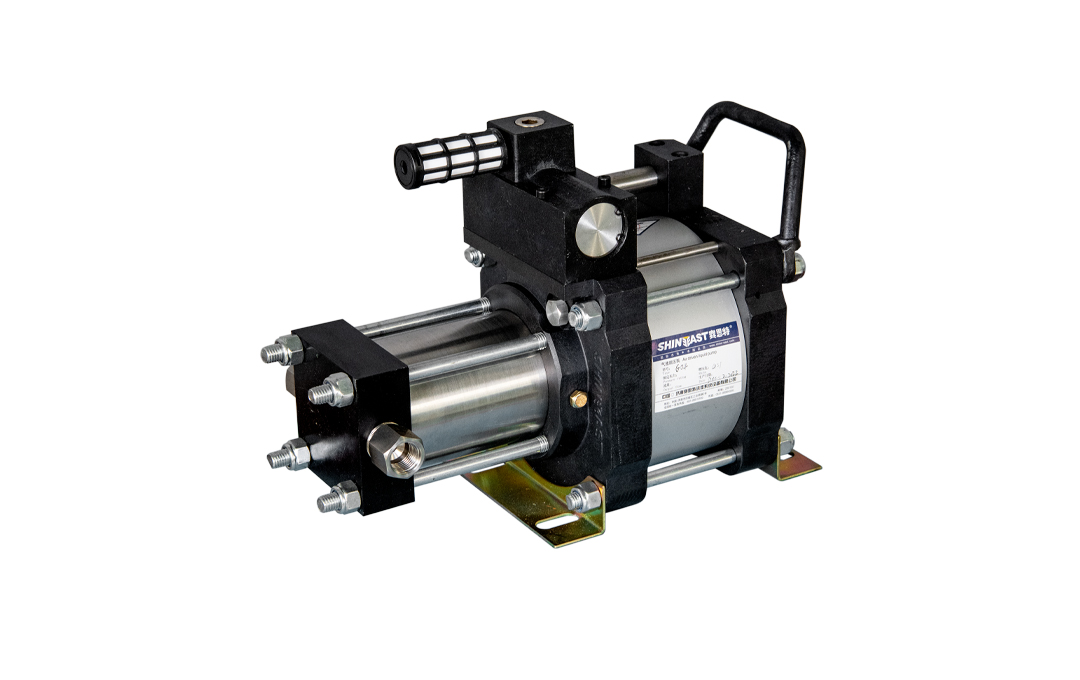

Technical parameters of G4-FL LPG Pump：
Product name | G4-FL Air Driven LPG Pump |
Pressure ratio | 4:1 |
Max.outlet pressure | 32 bar |
Drive air pressure | 3-8 bar |
Max. output flow | 7 litre/min |
Drive air inlet connection | PT1/2’’ |
Gas inlet connection | NPT1/2’’ |
Gas outlet connection | NPT1/2’’ |
Air drive pressure | 3-8 bar |
Noise | ＜75dB |

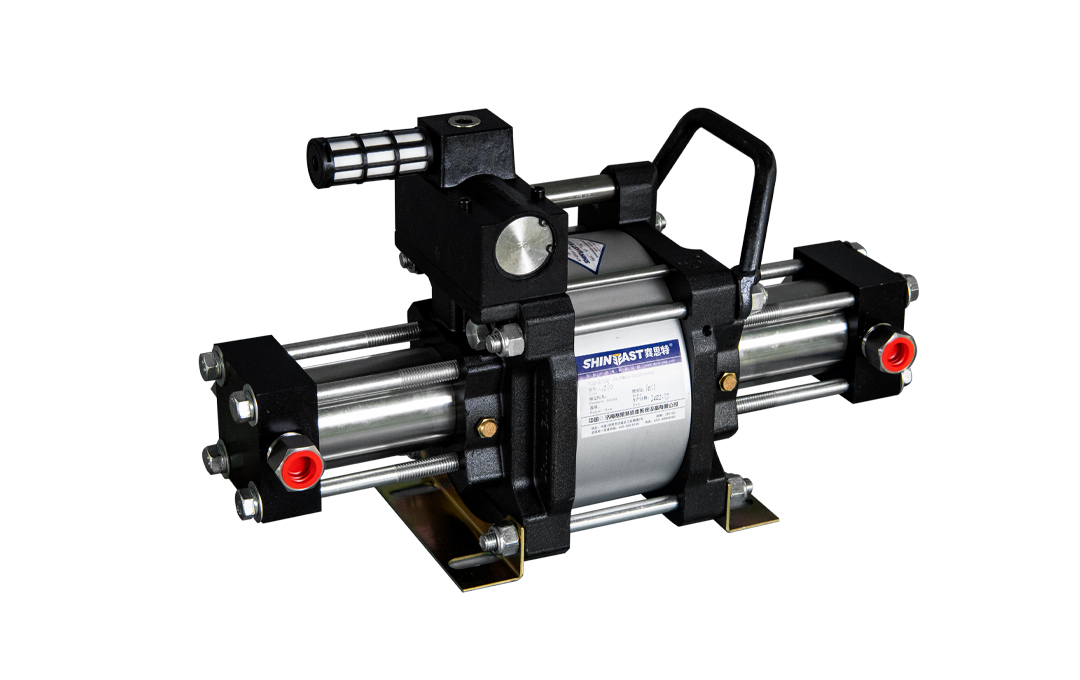

Technical parameters of GD4-FL LPG Pump：
Product name | GD4-FL Air Driven LPG Pump |
Pressure ratio | 4:1 |
Max.outlet pressure | 32 bar |
Drive air pressure | 3-8 bar |
Max. output flow | 15 litre/min |
Drive air inlet connection | PT1/2’’ |
Gas inlet connection | NPT1/2’’ |
Gas outlet connection | NPT1/2’’ |
Air drive pressure | 3-8 bar |
Noise | ＜75dB |
Video
LPG Pumps, LPG Recharing Pump, Air Driven LPG Pumps, LPG Transfer Pump, Booster Pump for Filling LPG Cylinders, Air Pumps
