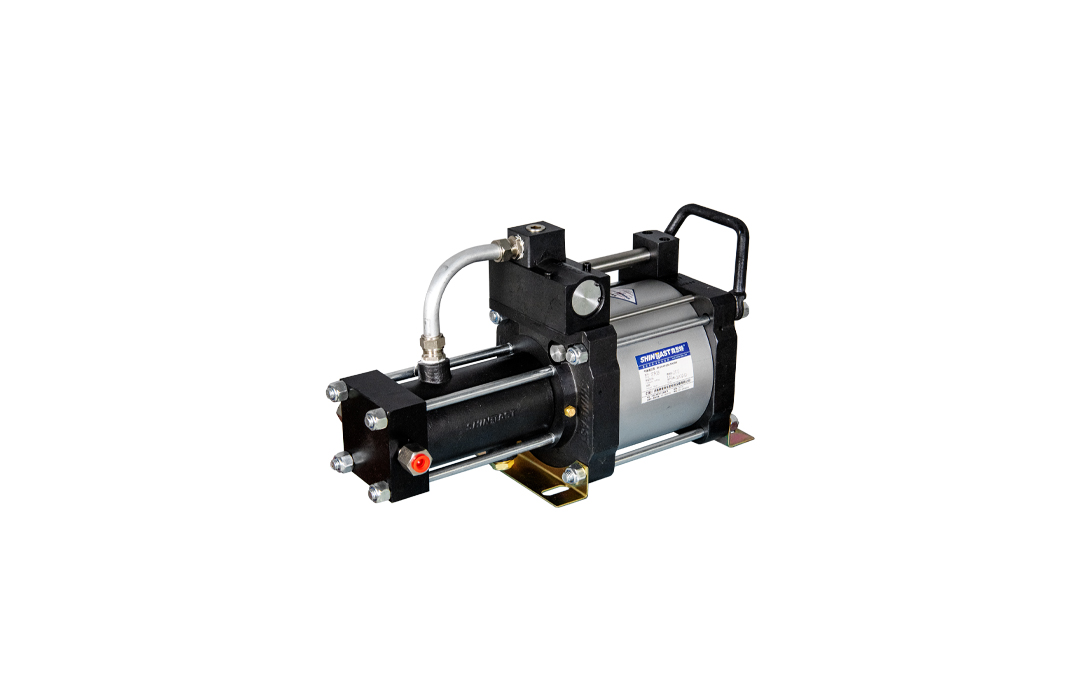

High Pressure Gas Boosters for Charging Up Nitrogen Cylinder

STA Series


Send Inquiry

Description

SHINEEAST High Pressure Boosters provide for pressures up to 1400bar. Used for oil free compression not only of air or Nitrogen, but also flammable and risk gases like hydrogen, oxygen and natural gas. These boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging.

Technical Parameters of STA Series Gas Boosters:

Type

Pressure

ratio

Min.   gas

inlet   pressure

PA   (bar)

Max.   gas

inlet

pressure

PA   (bar)

Max.   gas

outlet   pressure PB (bar)

Formula   to

calculate   gas outlet pressure PB

Connection:

Gas   Inlet /

Gas   outlet (NPT thread)

Max.   flow at air

drive   pressure of 6bar (L/min)

STA0.6

0.6:1

0.1

4

4.8

0.6X PL

1/2 /    1/2

1000 (   at PA of 6 bar )

STA02

2:1

1.7

16

16

2X PL

1/2 /    1/2

960(at   PA of 6 bar )

STA05

5:1

3.5

40

40

5XPL

1/2 /    1/2

360(at   PA of 6 bar )

STA06

6:1

4.5

48

48

6XPL

3/8 /    3/8

110(at   PA of 6 bar )

STA10

10:1

5.5

80

80

10XPL

3/8/ 3/8

196(at   PA of 20 bar )

STA25

25:1

10

200

200

25XPL

1/4/    1/4

81(at   PA of 20 bar )

STA40

40:1

15

320

320

40XPL

1/4/    1/4

49(at   PA of 20 bar )

STA60

60:1

25

480

480

60XPL

1/4/    1/4

61(at   PA of 40 bar )

STA100

100:1

35

800

800

100XPL

1/4/   M14X1.5

39(at   PA of 40 bar )
