Gas Boosters
Description

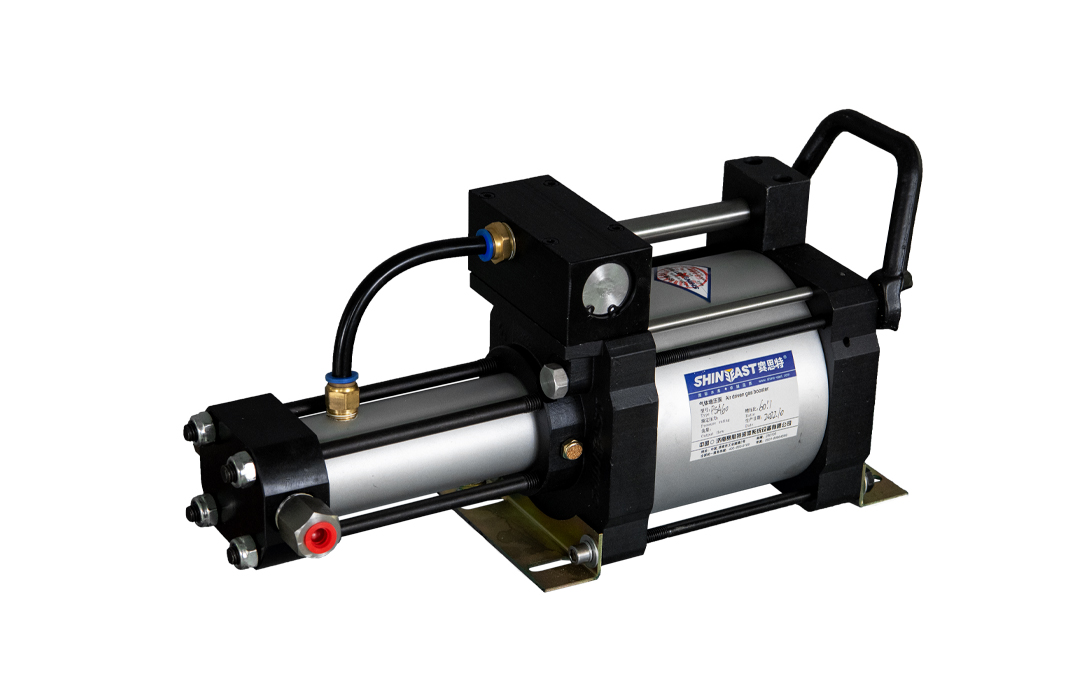

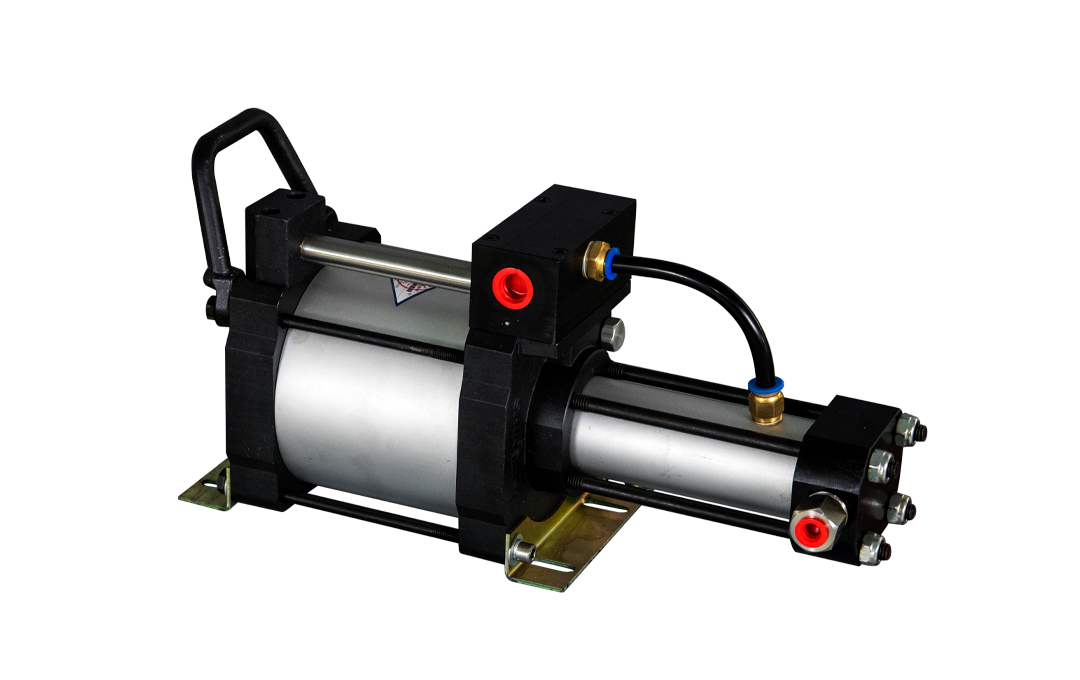

PSA Series Air Driven Gas Booster are single acting models with single air drive heads, with diameter of drive plunger 125mm.
Air drive pressure is from 1 bar (14.5 psi) to 8 bar (116 psi).
Technical Parameters of PSA Series Air Driven Gas Booster:
Type | Pressure ratio | Min. gas inlet pressure PA（bar） | Max. gas Inlet pressure PA（bar） | Max.gas outlet pressure PB（bar） | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet(NPT thread) | Max. flow at air drive pressure of 6 bar (L/min) |
PSA02 | 2:1 | 2.1 | 16 | 16 | 2PL | 3/8/3/8 | 206(at PA of 6 bar ) |
PSA06 | 6:1 | 4.3 | 48 | 48 | 6 PL | 3/8/3/8 | 84(at PA of 8 bar ) |
PSA15 | 15:1 | 6.8 | 120 | 120 | 15 PL | 1/4/1/4 | 196(at PA of 20 bar ) |
PSA25 | 25:1 | 12.5 | 200 | 200 | 25 PL | 1/4/1/4 | 48(at PA of 20 bar ) |
PSA40 | 40:1 | 18.5 | 320 | 320 | 40 PL | 1/4/1/4 | 49(at PA of 20 bar ) |
PSA60 | 60:1 | 31 | 480 | 480 | 60PL | 1/4/1/4 | 61(at PA of 40 bar ) |
Note: PL: air drive pressure PA: gas inlet pressure PB: gas outlet pressure
